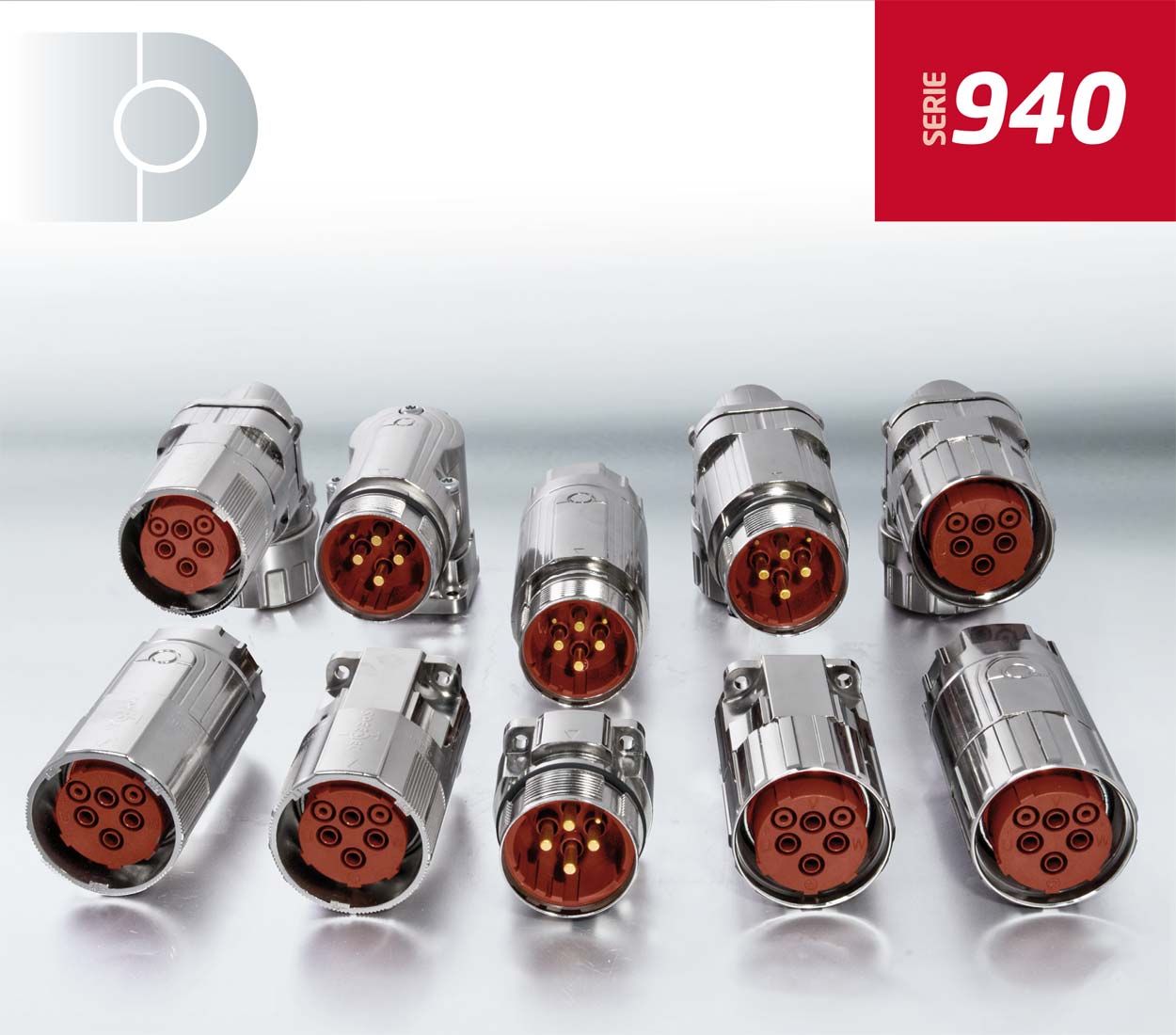

940

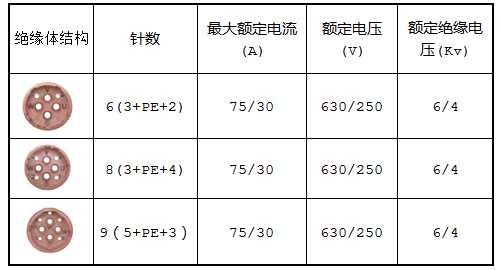

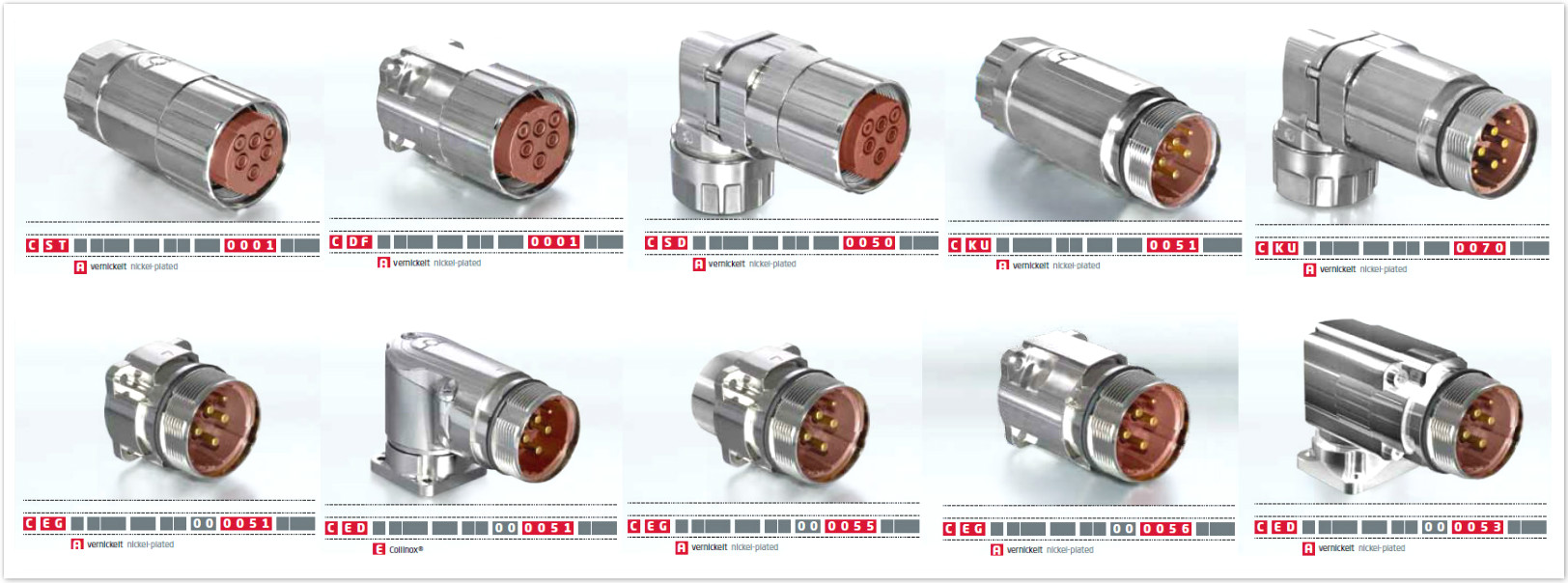

M40动力系列，提供6、8、9芯三种选择，额定电流：75A/30A，额定电压630V/250V，针范围：φ 7,0 – φ25,0 mm。IP等级：66/67，屏蔽等级：EMC
产品技术参数：
Technical data：
Temperature range： -20° C to 130° C
clamping range： ? 7.0mm – ?25.0 mm
protection type: IP 66/67
Electrical Data：
mating cycles: 500
Values according to VDE 0110/EN 61984, part 6.19.2.2：
pollution degree: 3
overvoltage category: III
max. height for operation: 2000 m
Material：
housing: brass, aluminium, zinc diecast; nickel-plated
clamp ring: zinc diecast,rass; nickel-plated
insulation insert: PA/PBT, UL 94/V0
sealing: FPM/EPDM
